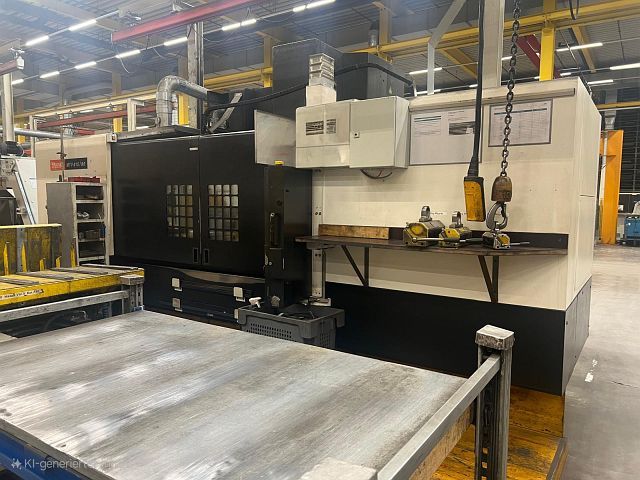

MAZAK V-815/80
Kategorija
Machining Center - Vert.
Objekta
50182
Proizvođač
MAZAK
Model
V-815/80
God
2013
Kontrola
MAZATROL 640M
Objekta
50182
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 3 | |
| X-axis travel: | 2000 | mm |
| Y-axis travel: | 810 | mm |
| Z-axis travel: | 760 | mm |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 6000 | /min |
| Tool magazine | ||
|---|---|---|
| number of positions: | 30 | |
| automatic workload equipment | ||
|---|---|---|
| number of store positions: | 30 | |
| workpiece load (max): | 3000 | kg |
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 397 | kVA |
| mains voltage: | 400 | V |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 5415 | mm |
| space requirements -front/back-: | 3253 | mm |
| total height: | 2695 | mm |
| total weight approx.: | 14000 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
