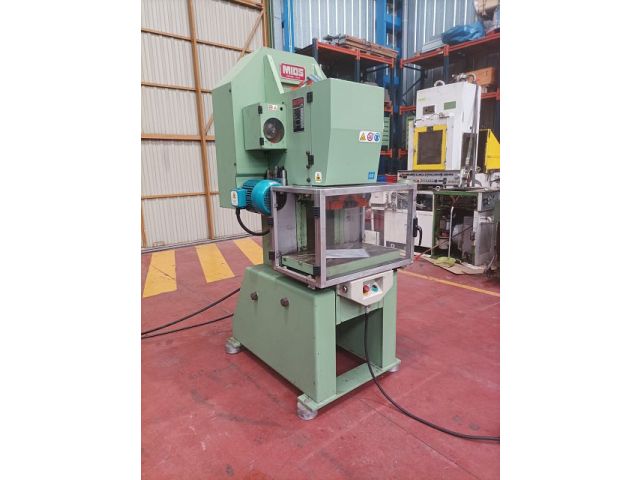

MIOS T-40 FV
Kategorije
EkscentriĊna stiskalnica (C okvirja)
Objekt
49266
Proizvajalec
MIOS
Model
T-40 FV
Leto
2001
Objekt
49266
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| frame design: C-frame, single sided | ||
| openings in uprights: yes | ||
| number of suspensions: | 1 | |
| opening in table: yes | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 40 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 670 | mm |
| table surface (front-back): | 405 | mm |
| opening in bed (diameter): | 120 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 315 | mm |
| table surface (front-back): | 155 | mm |
| spigot hole diameter: | 38 | mm |
| stroke rate (max.): | 140 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 50 | mm |
| stroke min.: | 5 | mm |
| stroke max.: | 75 | mm |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 330 | mm |
| throat (C-frame): | 200 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 4 | kW |
| mains voltage: | 380 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 2000 | kg |
| Attachments (presses) | ||
|---|---|---|
| safety guard / safety door: yes | ||
| 2-hand engagement: yes | ||
| foot engagement: yes | ||
| acc. to actual accident protection regulation: yes | ||
| European CE standards: yes | ||
