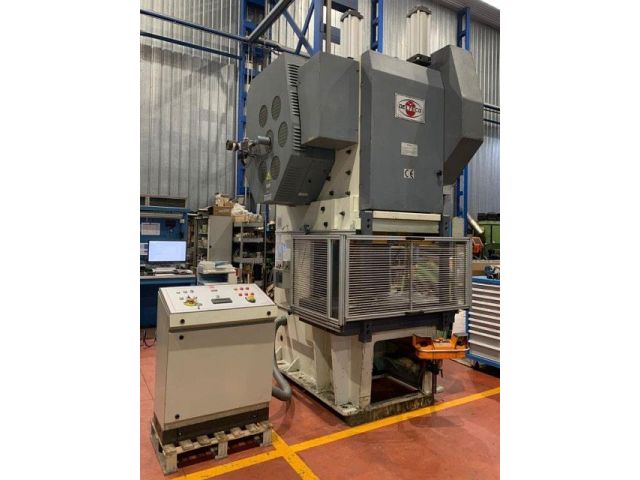

DELTECO PE-200
Kategorije
EkscentriĊna stiskalnica (C okvirja)
Objekt
43281
Proizvajalec
DELTECO
Model
PE-200
Leto
2000
Last Overhaul
2024
Objekt
43281
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| frame design: C-frame, single sided | ||
| number of suspensions: | 1 | |
| Press forces | ||
|---|---|---|
| total force (nominal): | 200 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 1400 | mm |
| table surface (front-back): | 800 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 1000 | mm |
| table surface (front-back): | 600 | mm |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 120 | mm |
| autom. Slide adjustment: yes | ||
| stroke min.: | 20 | mm |
| stroke max.: | 200 | mm |
| stroke rate (max.): | 45 | /min |
| hydraulic overload protection: yes | ||
| Die Cushion (table cushion) | ||
|---|---|---|
| number of cushions: | 1 | |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 510 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 380 | V |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1900 | mm |
| space requirements -front/back-: | 2250 | mm |
| height above floor level: | 3850 | mm |
| total weight approx.: | 16500 | kg |
| Attachments (presses) | ||
|---|---|---|
| 2-hand engagement: yes | ||
| acc. to actual accident protection regulation: yes | ||
| European CE standards: yes | ||
| The mechanically repaired and painted press, with a 1 year warranty, delivery time between 6 and 8 months |
