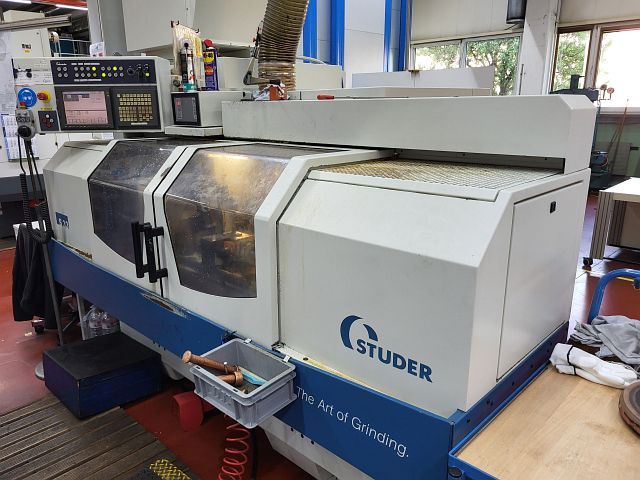

STUDER S 33
Categories
Cylindrical Grinder - Universal
Object
43582
Brand
STUDER
Model
S 33
YoM
2003
Controls
FANUC
Object
43582
| Working Range External Grinding | ||
|---|---|---|
| grinding diameter (max): | 350 | mm |
| grinding length: | 650 | mm |
| tailstock | ||
|---|---|---|
| distance betw. centers (max): | 650 | mm |
| sleeve stroke: | 35 | mm |
| sleeve diameter: | 80 | mm |
| taper: MK 3 | ||
| Spindlestock Grinding Spindle | ||
|---|---|---|
| tilting range (B-direction) min: | 0 | ° |
| rotating range B-axis up to: | 8.5 | ° |
| - mode of operation: manual | ||
| Grinding Tool | ||
|---|---|---|
| type of grinding tool: wheel | ||
| diameter (max): | 500 | mm |
| width: | 63 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2670 | mm |
| space requirements -front/back-: | 2100 | mm |
| total height: | 1800 | mm |
| attachments (grinding) | ||
|---|---|---|
| internal grinding spindle: yes | ||
| Machine in good and accurate condition ± 0.003
Machine with central coolant system Power on 44`000h Equipped with 2 spindles: 1x internal grinding 1x external grinding |
